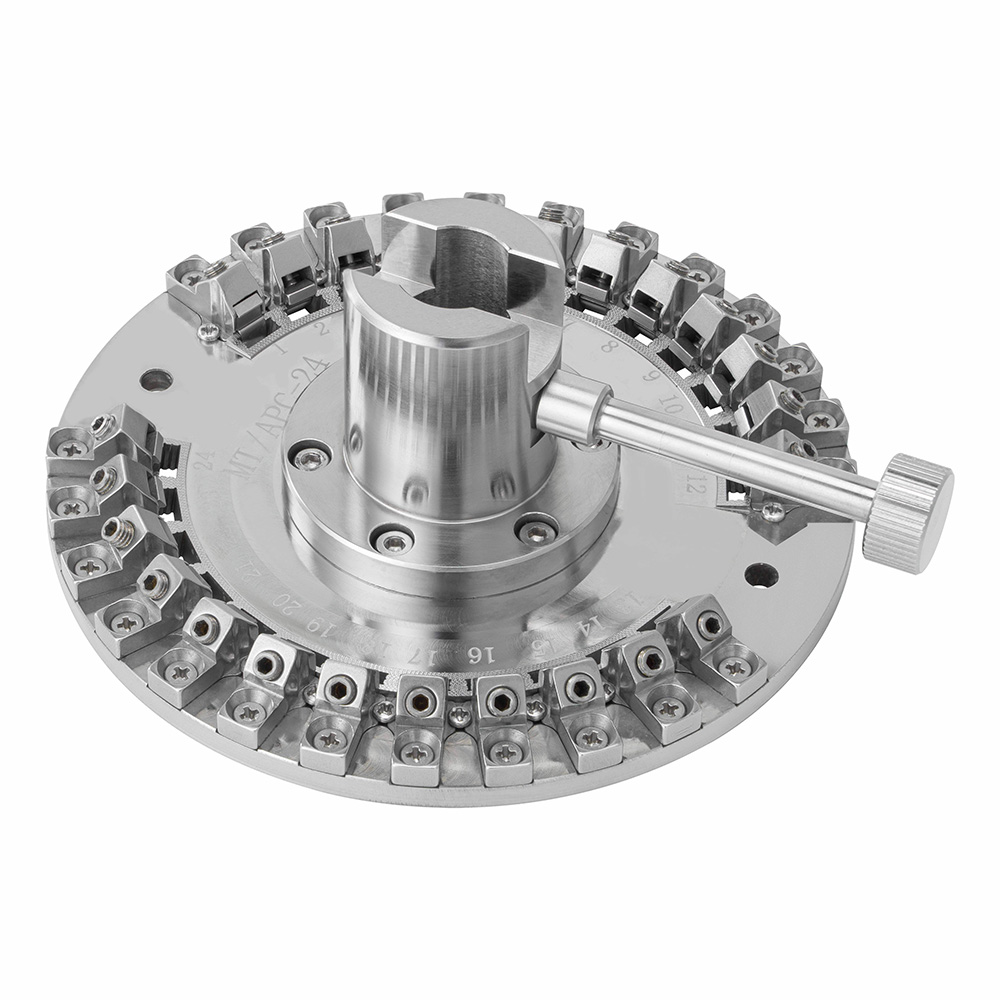

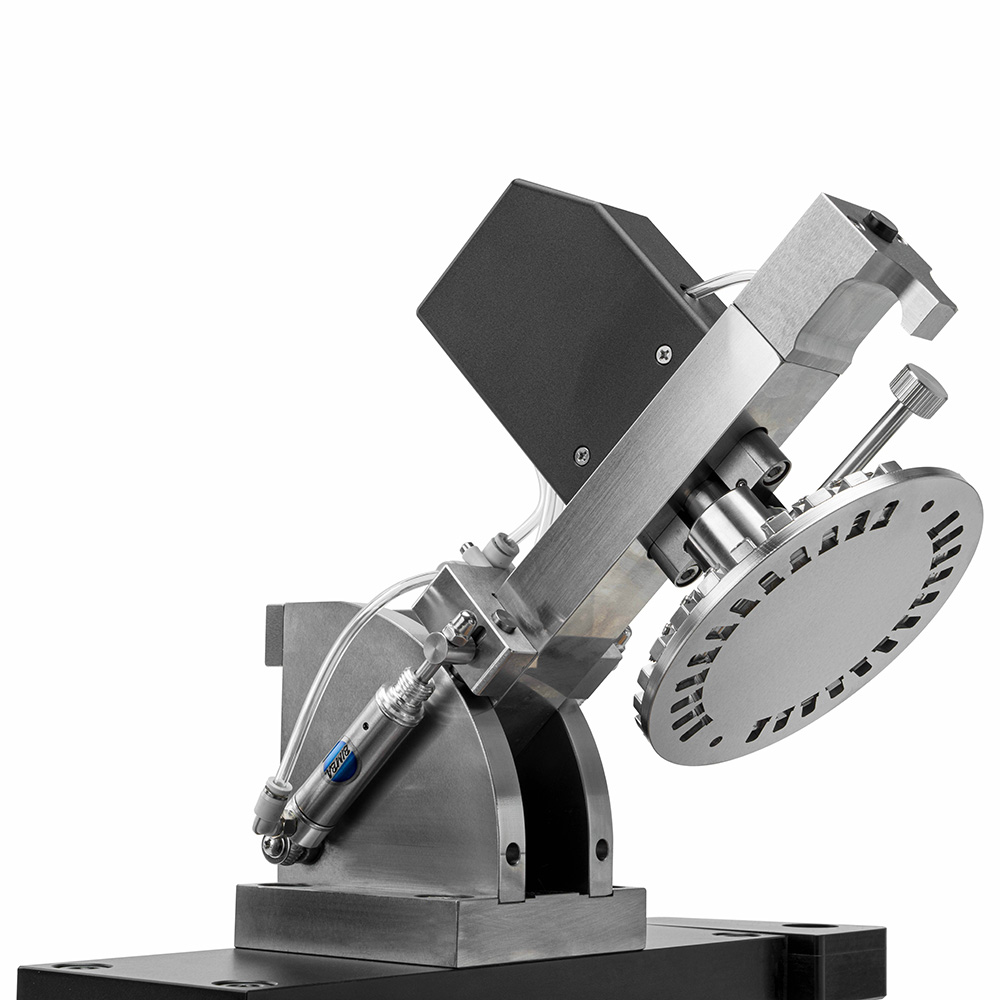

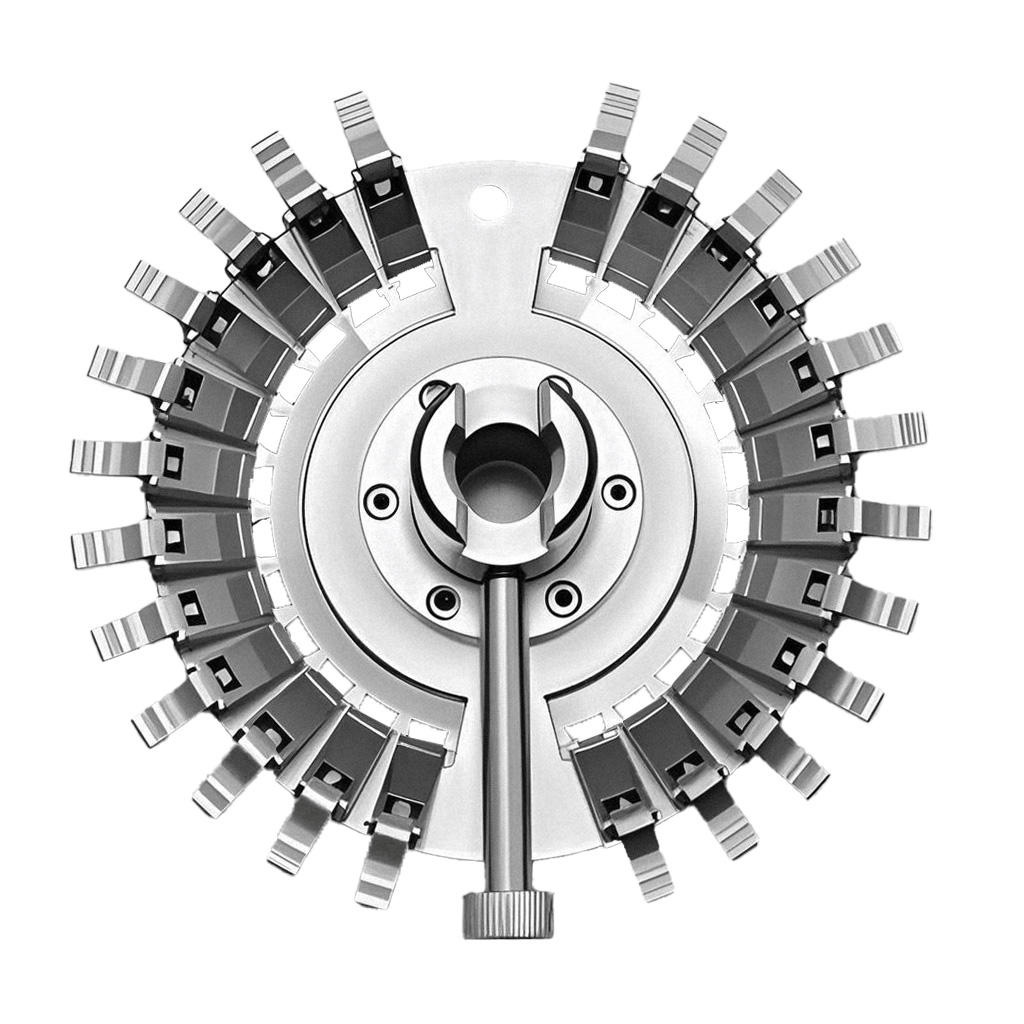

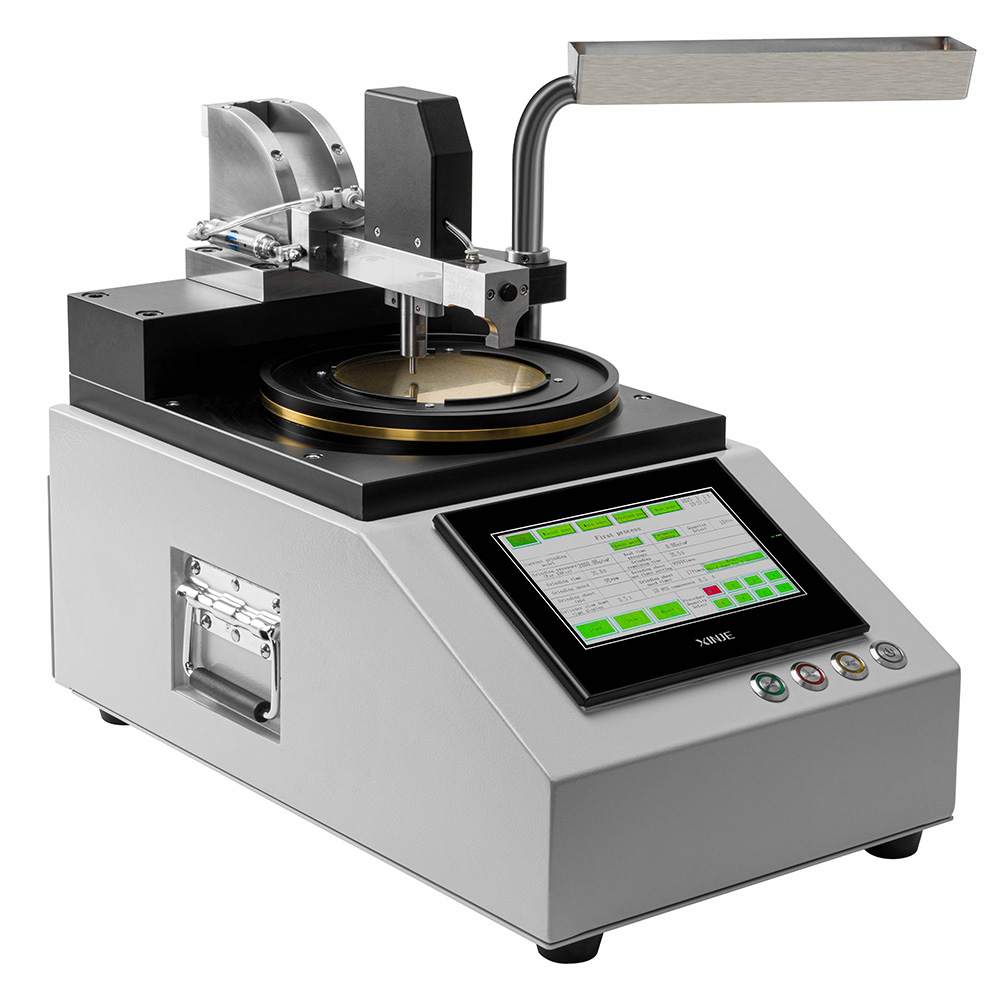

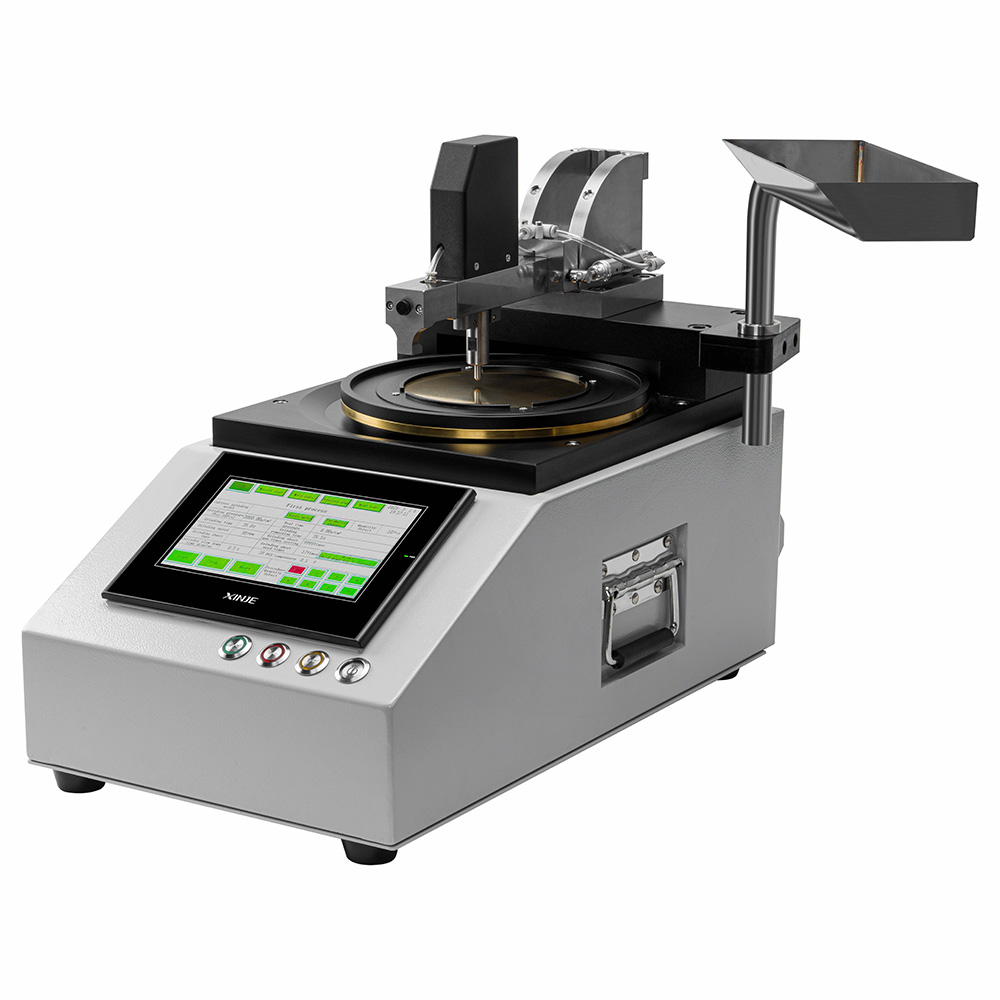

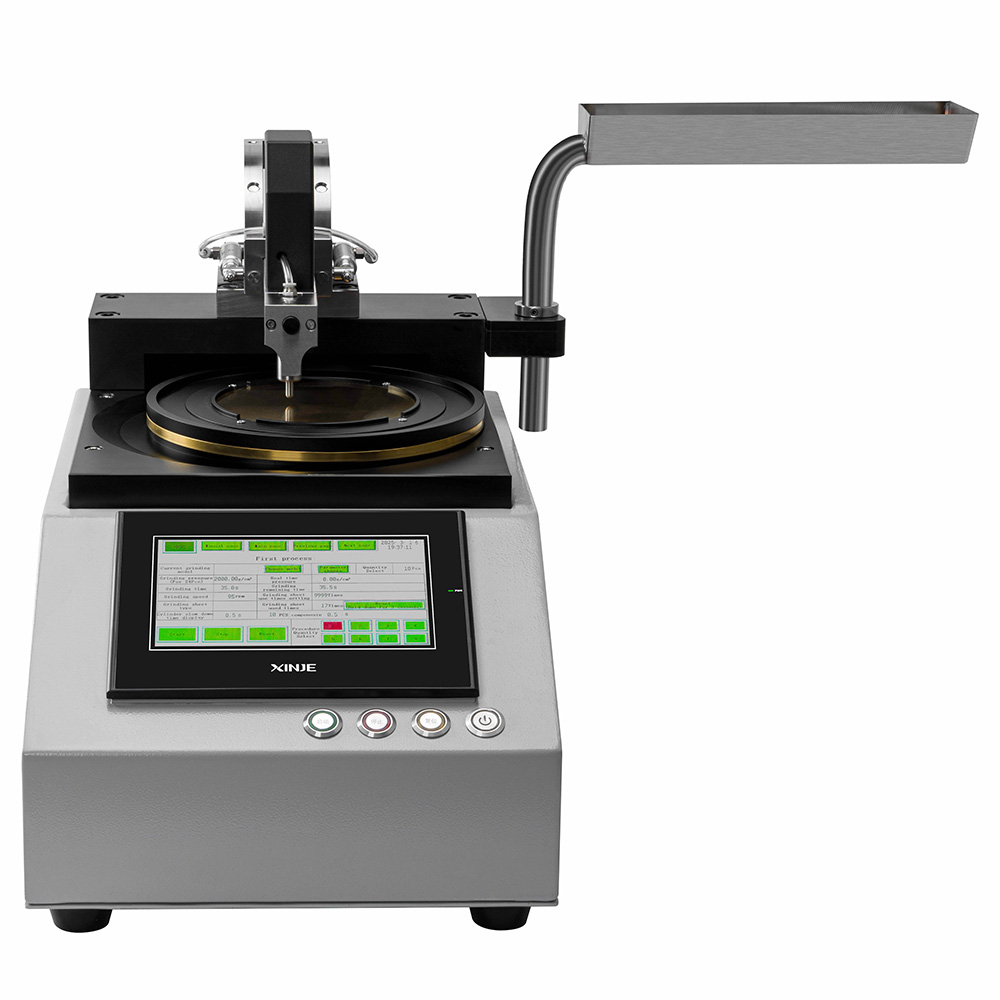

FPM-MPO fiber polishing machine is designed for MTP MPO connector polishing. And it is also used for regular simplex fiber connector polishing, such as SC, FC, ST, LC upc and APC end-face.
Feature
1.Programmable system with memory for procedures.
2.Dual MT UPC&Angled PC connector polishing;
3.High volume polishing,more than 24 ferrules per cycle.
4.Accommodates FC/UPC,SC/UPC,ST/UPC,LC/UPC,MU/UPC,FC/APC,MT-RJ,E2000connectors.
5.Excellent endface quality.
Specification
|
Item
|
Index
|
|
Power Source
|
|
Voltage : Frequency
|
AC 110-120V: 50Hz/60Hz Or AC 220-240V: 50Hz
|
|
Power waste
|
80VA
|
|
Drive Units
|
|
Big motor (rpm)
|
15W,Including transmission
|
|
Small motor (rpm)
|
6 W,Including transmission
|
|
Fan
|
φ90mm
|
|
Operation unit
|
|
Control time
|
Set the growth time of 0.1mins ,maximum time is 3min the middle button is power switch, right button is the start switch
|
|
Power switch
|
|
|
Timing switch
|
|
|
Pressure unit
|
Centre coil spring
|
|
Pressure way
|
|
|
Polishing
|
|
The least grinding ferrule abrasive sheet level grinding by polishing pad and polishing by PC connector
|
1 - 48 connector
|
|
Outer diameter:110mm
|
|
Glass pad
|
|
Synthetic rubber pad
|
|
Performance
|
|
Polish PC connector
|
Four-step, 1.4 to 2.4 minutes
|
|
Polish APC connector
|
Five-step, 3.0 to 5.0 minutes
|
|
Dimension
|
W230 × D230 × H350 mm
|
FAQ
1.Are you a factory or a trader?
we are factory.
2.What is your MOQ?
MOQ 1 piece.
3.Do you provide sample services？
Yes, we will provide samples(Samples at prices announced by chuanglixun).
4.How will you ship to me?
We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5.How do we pay
Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?
The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7.Do you provide customized services？
Yes, we provide customized services, According to customer requirements and description.
