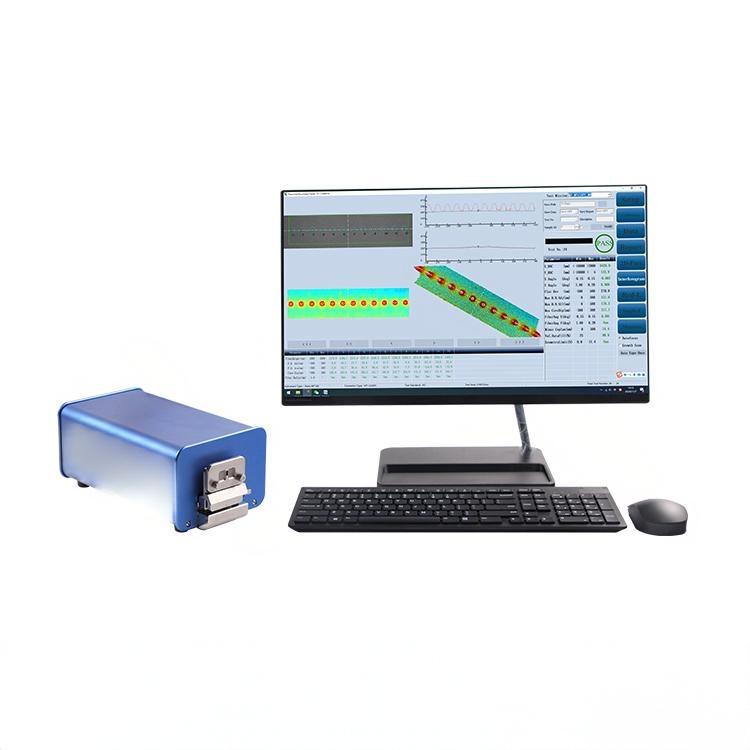

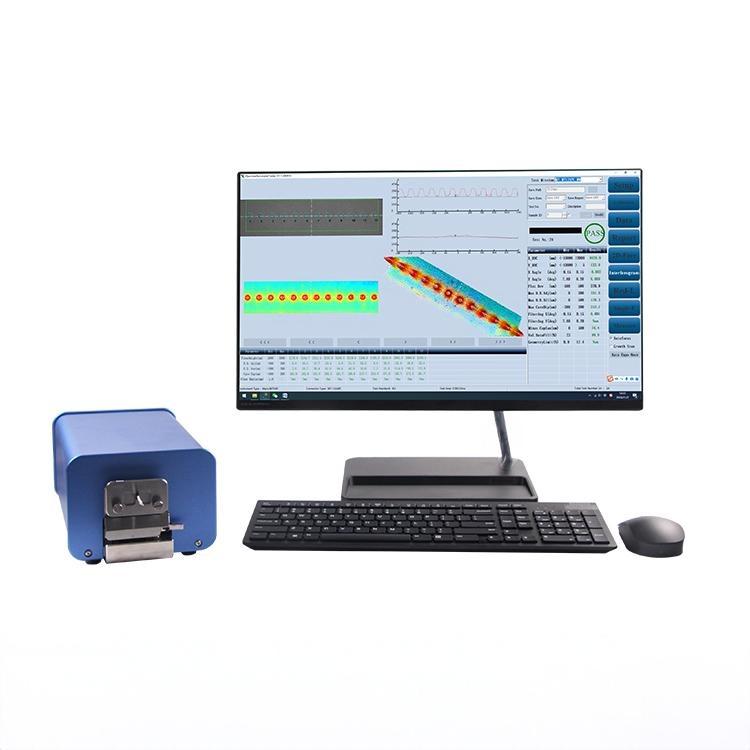

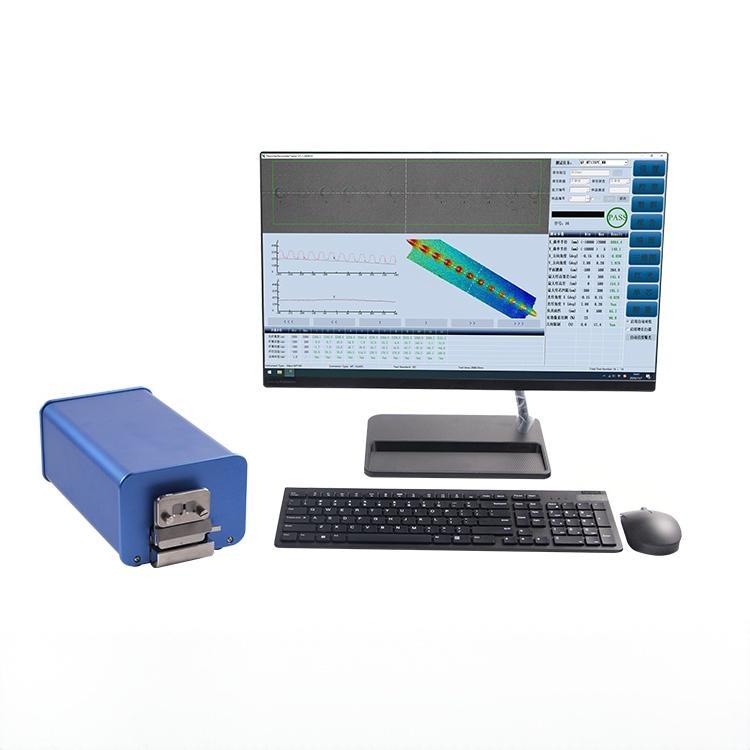

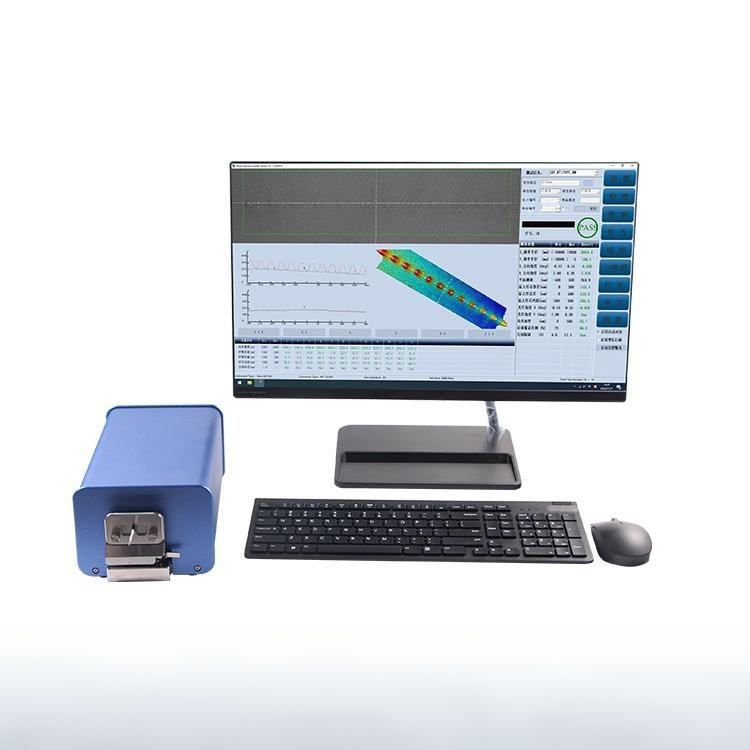

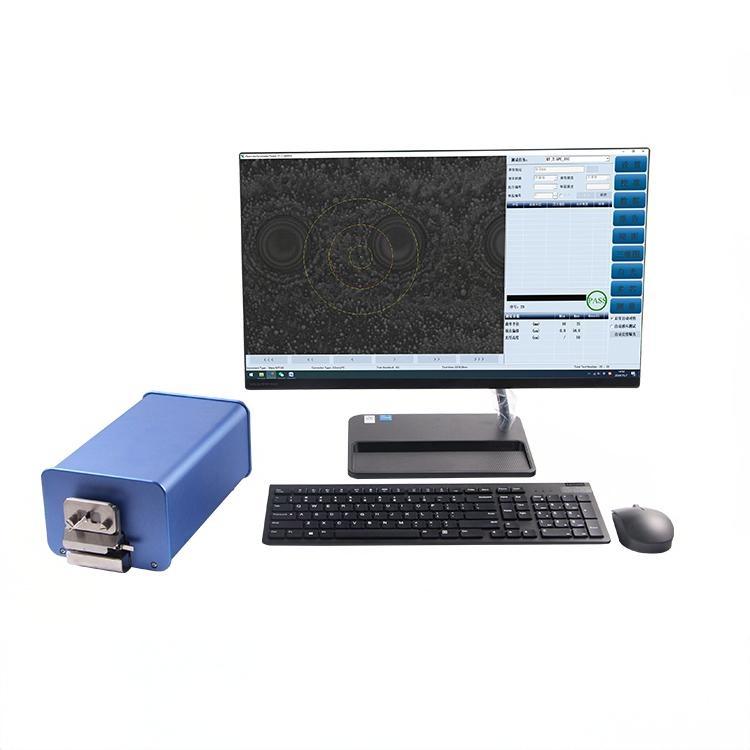

FI-MT type single multi-core integrated fiber end-face interferometer is mainly divided into two parts: interferometer mainframe and special measurement software. The device is mainly characterized by the following：

(1) Measurement of a wide range of samples, with a large number of cores and fast speeds

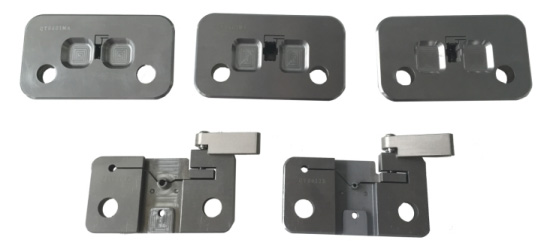

The FI-MT interferometer offers extremely high resolution and a large field of view, with a test area of up to 3.3 mm X 2.6 mm. The software can now perform fast measurements on multi-pole connectors of up to 72 cores, and 12-pole connectors in as little as 5 seconds. Whether for process development or mass production, the FI-MT interferometer fixtures include MT/MPO insert fixtures, MT/MPO finished fixtures, MTRJ insert fixtures as well as SC general-purpose single-pole fixtures and LC general-purpose single-pole fixtures, which can satisfy the end-users’ requirements for single-pole and multi-pole connector measurements.

(2)Simple software measurement interface

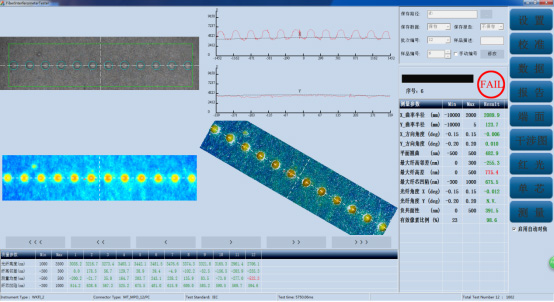

FI-MT measurement software interface is intuitive and clear, easy to operate, and supports Chinese and English display. The software will automatically analyze and judge the data of the tested part, and reduce the geometric end face of the tested part to a three-dimensional diagram, giving 2D diagrams of the multi-core connector, section line diagrams, and single-core connector surface roughness diagrams, isometric diagrams, which is convenient for users to intuitively judge the condition of the connector’s end face under test. At the same time, it automatically generates test reports and test data reports in Excel file format, which is convenient for document management and printing. In addition, single multi-core software switching just click a button, the software will automatically read the internal storage information according to the situation and convert the light source, standards, measurement mode and other information. To do a real one-button switch.

(3)Convenient and intuitive hardware operation

FI-MT interferometer only needs to connect the power cord and USB cable to complete the hardware connection. The interferometer fixture adopts taper angle locking positioning, no need to do any hardware adjustment after installing on the interferometer, through the software can complete the optical fiber image center positioning work. PC measurement mode and APC measurement mode conversion does not need to replace the fixture, and do not need to re-calibrate the interferometer, as long as the angle of the operating platform adjusted to the corresponding position can be directly measured.

(4)Fully automatic calibration, focusing and measurement functions

FI-MT interferometer has built-in automatic calibration module, the whole process is simple and fast. The software has detailed text and picture prompts wizard to make the user’s calibration more convenient, fast and intuitive. After the calibration is completed, the measurement software will automatically analyze the deviation value of the hardware, and click the “Confirm” button, the software will automatically compensate the deviation value of the hardware, so that the user no longer needs to make manual adjustments to the hardware to achieve the purpose of calibration. The autofocus function eliminates the need to manually adjust the focus and allows the user to quickly and automatically find the clear interference fringes and move the scanning start position accurately through the one-button operation of the software to complete the entire measurement process. In addition, the FI-MT interferometer is equipped with coarse and fine adjustment buttons for manual focusing, which increases the flexibility of use.
