Key Features:
This equipment integrates the advantages from China and oversea factory’s cutting machines and increase an automatic feedback function for data groups.
> It makes the measuring accuracy improve better. It includes automatic winding and automatic cutting functions to protect the optical fiber.
> Flexible for length and speed setting, High efficiency.
> Friendly touch screen interface, compact window, self-defined language: Chinese / English / Korea.
> Easy to handle, High precision, High speed, Low noise. It is the best machine for cable cutting and winding.
Technical Parameters:
|
Item
|
Capacity
|
|
* Operation System:
|
Chinese and English touch screen
|
|
* Cutting Length:
|
no more than 999 mtrs
|
|
* Cable type:
|
Fiber dia 0.9mm to dia 6mm,
Simplex fiber, Duplex fiber and Ribbon Fiber.
UTP, CAT5, CAT5e, CAT6, CAT6a (Customize: dia 7.3 mm cable)
|
|
* Speed:
|
1.6 meters per second
|
|
* Length Accuracy:
|
no more than 3%
|
|
* Power Consumption:
|
450 Watt, 220V AC, 50/60Hz
|
|
* Pressure Source:
|
0.4 to 0.6Mpa
|
|

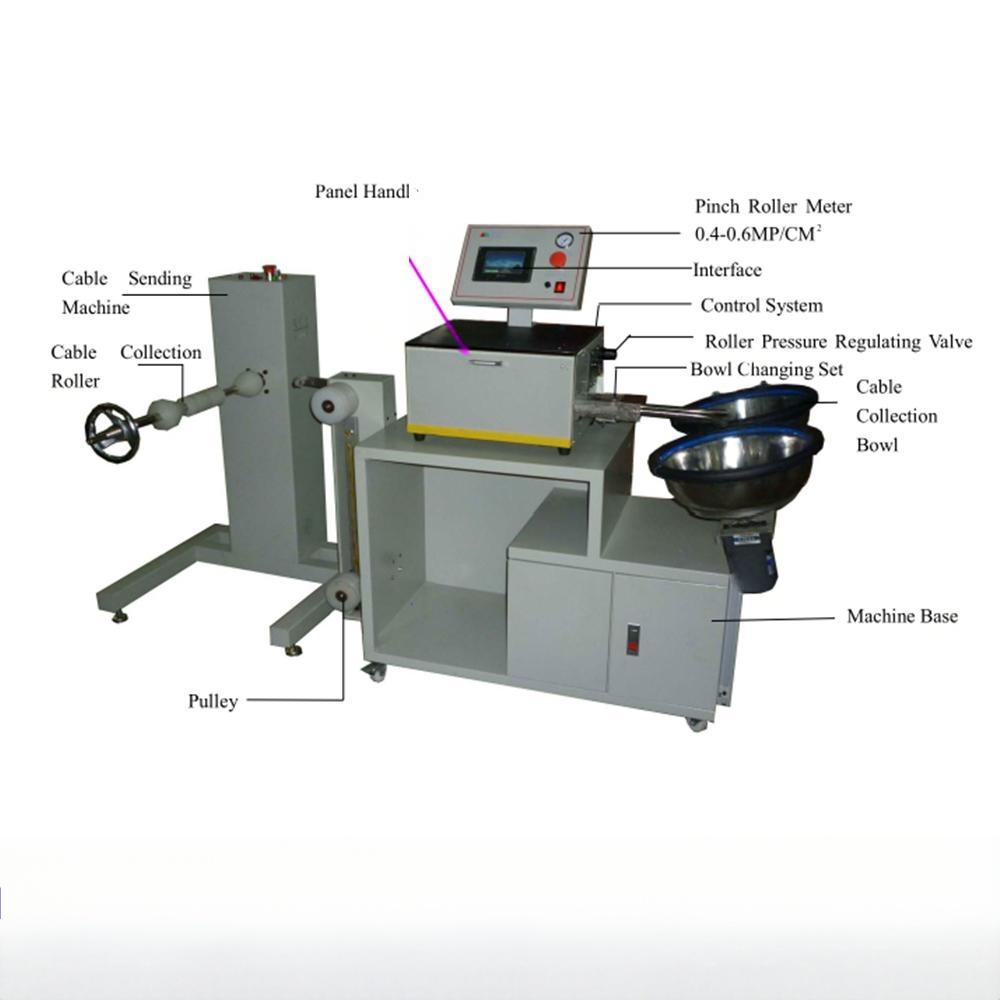

* Carrying Weight for Cable Sending Machine
|
Less than 40 kgs
|
|
* Cable Drum Outer Diameter for Cable Sending Machine:
|
Less than 500 mm
|
|
* Cable Drum Inner Diameter for Cable Sending Machine:
|
More than 23 mm, and less than 80 mm
|
|
* Cable Collection Bowl:
|
Diameter 180 mm
|
|
* Assembled Machine Size:
|
110cm * 73cm * 125cm
|
|
* Net Weight/Gross Weight:
|
134 kgs / 175kgs
|
|
* Wooden Case Size:
|
110cm(L)* 73cm(W) *125cm(H)
|
Standard Configuration：
|
Name
|
quantity
|
|
Cutting Machine AOFC-2001
|
1
|
|
Receiving bowl
|
1
|
|
Stainless Steel Guide Pipe
|
1
|
|
power line
|
/
|
